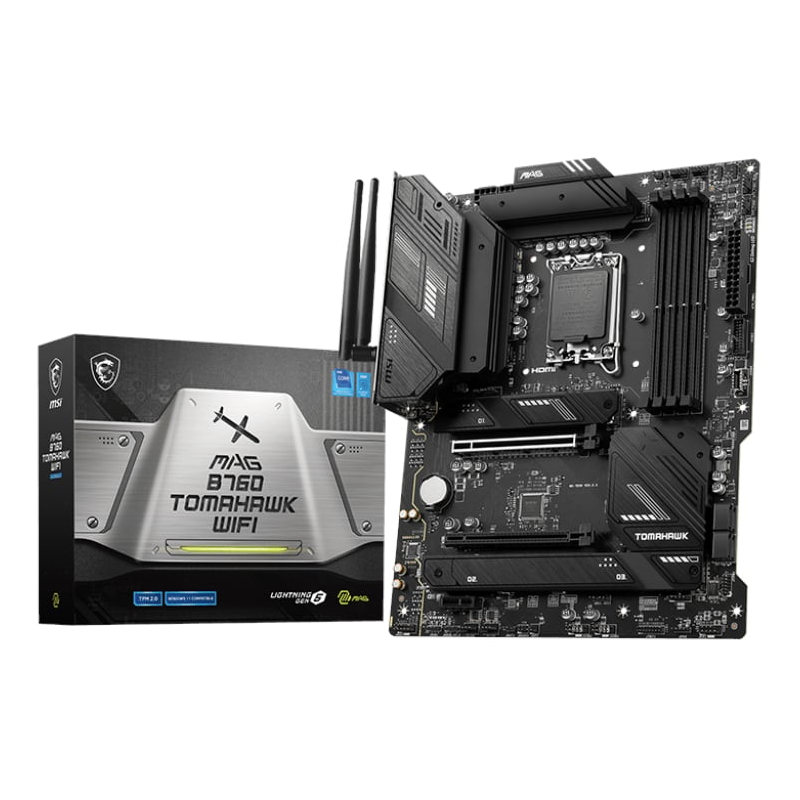

MSI MAG B760 TOMAHAWK WIFI DDR5 Intel LGA1700 ATX Gaming Motherboard

The MAG series, your dependable ally in the pursuit of gaming glories, is now available. These gaming gadgets were designed with military-inspired precision and have become emblems of toughness and dependability. With our M.2 SSD protection technology, you can say goodbye to sluggish load times since it guarantees top performance without throttling. By maximising heat dissipation, the extended heatsink design keeps powerful CPUs operating at peak performance. Upper MOS heat is handled by the VRM heatsink, and excellent thermal pads ensure that all cores operate at their peak efficiency. Thanks to our dedicated water pump PIN header, which provides complete control over pump speed, get ready to explore custom water cooling solutions with ease. Installation is simple for a precise fit with a clearly defined "keep-out-zone."

Not only that, but our improved PCB design boosts bandwidth and transmission speed to guarantee faultless circuit functioning. Experience bandwidth like never before with Lightning Gen 5 PCI-E, reaching a remarkable 128GB/s on an x16 interface. Our cutting-edge SMT technology minimises electrical noise and interference, perfectly supporting PCI-E 5.0 signals. We have used DDR5 memory technology for the highest level of memory performance and combined it with MSI Memory Boost for unmatched high-frequency signal purity. Say goodbye to electromagnetic interference and solder joint flaws. With the MAG B760 TOMAHAWK WIFI, you can rule your gaming universe with finesse and style.

FEATURES:

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7000+(OC) MHz
• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works
• AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material

SPECIFICATIONS:

• Socket: LGA 1700
• CPU: Supports 12th/ 13th Gen Intel®  Core™ Processors, Pentium® Gold and Celeron® Processors
• Chipset: INTEL B760
• DDR5 Memory: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E 5.0 x16: 1
• PCI-E 4.0: 1
• PCI-E 3.0: 1
• M.2 Slot: 3
• SATA 6G: 4
• RAID: 0/1/5/10
• LAN: Realtek® RTL8125BG 2.5Gbps LAN
• Wi-Fi and Bluetooth: Intel® Wi-Fi 6E
• USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2, Type C), 4(Gen 2, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4 (Type-A)
• Audio ports (Rear): Realtek® ALC897 Codec
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit
• Product Dimensions: 24.3 x 30.4 cm

WHAT’S IN THE BOX:

• MSI MAG B760 Tomahawk ATX Motherboard – Black x1
• Wi-Fi Antenna x2
• SATA cable x 1
• EZ M.2 Clip x 2
• USB Drive x1
• Cable Stickers Pack x1
• Quick Install Guide x1
• User Manual x1
