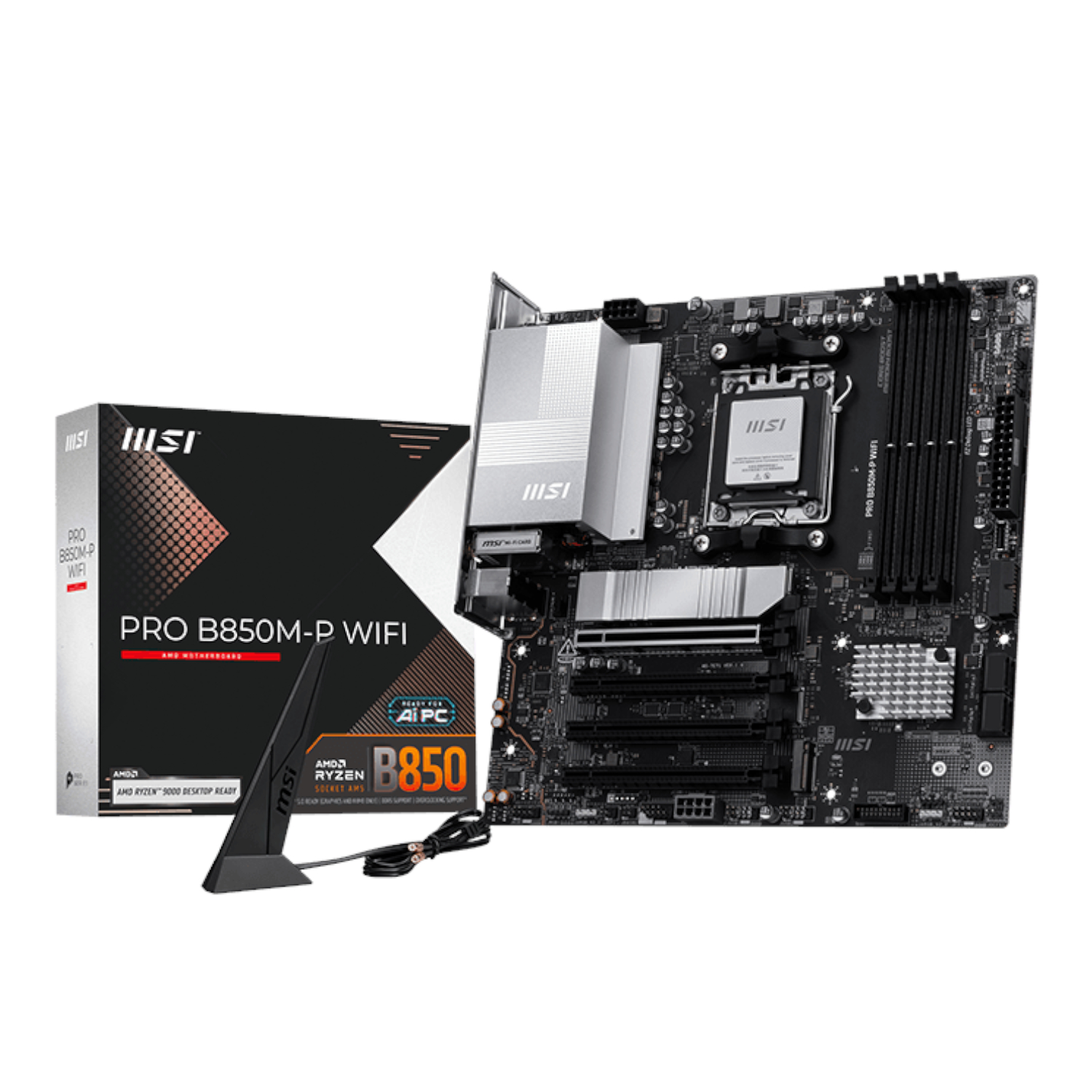

MSI PRO B850M-P WIFI AM5 mATX Motherboard

Experience unwavering system stability and blistering speeds with advanced cooling and PCIe 5.0, perfect for the discerning South African gamer and professional.

Quick Specs

• Harness unparalleled system stability with a robust 7+2+1 power design and enhanced cooling solutions.
• Ensure peak performance for extended sessions with advanced Frozr Guard cooling technology.
• Enjoy lightning-fast data transfers and gaming with PCIe 5.0 and Lightning Gen 5 M.2 slots.
• Connect with confidence using the latest Wi-Fi 7 solution for superior networking and a 5G LAN port.
• Immerse yourself in superior audio quality for an enhanced gaming experience.

Engineered for Steadfast Performance in South Africa

The MSI PRO B850M-P WIFI AM5 motherboard is constructed for builders who demand reliability and speed without compromise. Designed for the AM5 socket, this mATX board is a cornerstone for high-performance systems, catering to both the dedicated gamer seeking every millisecond advantage and the professional requiring stable, rapid data throughput. Its robust construction and advanced cooling mean your system will perform at its peak, even under the most demanding workloads. This is more than just a component; it is the foundation for your digital ambitions, built for the South African market.

Unshakeable Power Delivery and Cooling for AM5 Motherboards

At its core, the PRO B850M-P WIFI features a direct 7+2+1 power system, complemented by a P-PAK and an 8-pin CPU power connector. This ensures a clean, stable power supply to your processor, crucial for overclocking or sustained high-frequency operation on your AM5 motherboard. Integrated Core Boost and Memory Boost technologies further optimise power delivery and signal integrity, maximising your CPU and RAM potential. The foundation of this stability is a 6-layer PCB, utilising 2oz thickened copper and server-grade materials, providing superior heat dissipation and signal quality for an optimal DDR5 motherboard experience.

Advanced Thermal Management for Continuous Operation

Sustained performance requires superior cooling. MSI’s Frozr Guard system, featuring an extended heatsink and MOSFET thermal pads rated for 7W/mK, effectively manages heat generated by critical components. Additional choke thermal pads and the EZ M.2 Shield Frozr II ensure your M.2 SSDs remain at optimal temperatures, preventing thermal throttling and maintaining non-stop operational fluidity. This comprehensive thermal solution is designed for users who push their systems to the limit, ensuring your motherboard runs cool under pressure.

Designed for the Modern Creator and Gamer with DDR5 Support

The evolution of gaming and content creation demands cutting-edge connectivity. This AM5 motherboard is equipped with a PCIe 5.0 slot, offering double the bandwidth of PCIe 4.0, and a Lightning Gen 5 x4 M.2 slot for storage solutions that redefine speed. This means faster game loading times, quicker file transfers, and smoother performance in demanding applications. The inclusion of Wi-Fi 7 ensures you are ready for the next generation of wireless networking, offering unparalleled speed and stability for online gaming, streaming, and large file downloads, further enhanced by a 5G LAN port for wired connectivity. Experience the power of DDR5 memory with this advanced board.

Seamless Integration and User-Centric Design for Motherboards

MSI’s commitment to user experience is evident in its EZ DIY features. The EZ M.2 Shield Frozr II and EZ M.2 Clip II simplify M.2 SSD installation and removal, while the EZ PCIe Clip II makes graphics card installation straightforward. The EZ Antenna design ensures easy and secure attachment of your Wi-Fi antennas. Furthermore, Audio Boost technology rewards your ears with studio-grade sound quality, delivering an immersive audio experience that draws you deeper into your games and media. This is a truly superior motherboard.

FEATURES:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• Chipset: Intel B850
• CPU Support:
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
• Memory:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only*
  • * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot.
  • Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • The DIMM slots on this motherboard only have single-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
  • For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
• Onboard Graphics:
  • 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot:
  • 4x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• Audio:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
•  Storage:
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
  • 4x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot
  • Supports up to PCIe 4.0 x4
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
  • *Please refer to the manual for M.2 SSD heatsink restrictions.
•  RAID:
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
  • *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
•  USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
• LAN: 1x Realtek® 8126VB 5G LAN
• Wireless LAN & Bluetooth:
  • Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
• Internal IO:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• LED Feature:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
• Operating System: Support for Windows® 11 64-bit
• Form Factor: mATX
• Colour: Black

WHAT'S IN THE BOX:

• MSI PRO B850M-P WIFI AM5 mATX Motherboard – Black x1
• EZ Wi-Fi Antenna x1
• SATA Cable x1
• EZ M.2 Clip II Remover x1
• EZ M.2 Clip II x1
• M.2 Screw/ Standoff Sets x2
• Quick Start Guide x1

Why MSI?

MSI is a global leader in gaming hardware, consistently delivering high-performance motherboards that empower creators and competitors. With a strong presence in South Africa, MSI understands the local demand for reliable, cutting-edge technology. Choose MSI for innovation, quality, and a commitment to pushing the boundaries of what's possible in AM5 motherboards.
