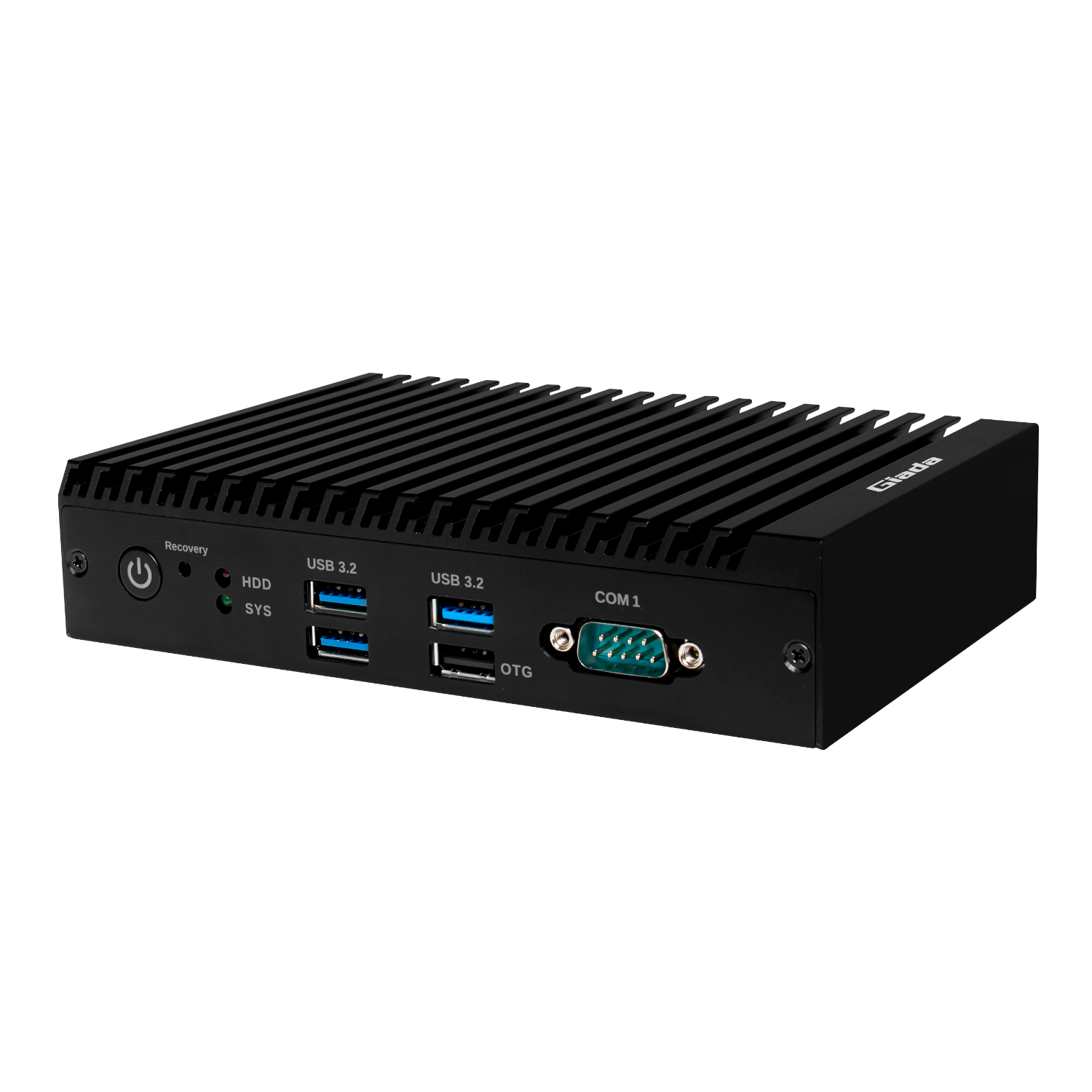

Giada DN84 Dual-HDMI Rockchip RK3576 Fanless ARM Player

Seamlessly power digital signage and robust data processing with dual 4K HDMI outputs and an energy-efficient, fanless ARM architecture for reliable operation in demanding South African environments.

Quick Specs

• Effortlessly drive two 4K displays simultaneously for comprehensive visual output.
• Experience silent, reliable operation thanks to its fanless, all-metal construction.
• Benefit from energy efficiency with a low 6W TDP, reducing operational costs.
• Adapt to diverse needs with flexible operating system choices of Android 14 or Debian 12.
• Ensure robust connectivity with Wi-Fi 6, Gigabit Ethernet, and multiple USB 3.2 ports.

Engineered for sustained performance and visual precision

The Giada DN84 Fanless ARM Player is meticulously crafted for professionals in South Africa who require unwavering reliability and high-definition visual output. This barebone system is the foundation for digital signage, information kiosks, and industrial control applications where a stable, high-performance computing solution is paramount. Its robust, fanless metal construction ensures efficient heat dissipation and silent operation, making it ideal for environments where dust and noise are unwelcome. The Rockchip RK3576 processor, coupled with versatile connectivity options, provides the power and flexibility to meet rigorous demands without compromise. This player is a testament to Giada's commitment to delivering exceptional barebone systems.

Uncompromising visual clarity for impactful displays

Leveraging the power of the Rockchip RK3576 chipset, the Giada DN84 supports dual HDMI outputs, each capable of delivering stunning 4K resolution at 60Hz. This dual-display capability is critical for applications requiring expansive digital signage, multi-panel information displays, or complex industrial monitoring setups. As a 4K digital signage player, it ensures that your message is delivered with clarity and impact, even in bright or demanding viewing conditions. The optional HDMI-IN port further enhances its versatility, allowing for real-time video input integration, making it a powerful solution for diverse visual needs.

Silent operation, superior durability

Built with a durable metal chassis, the Giada DN84 is designed for longevity and silent performance. The absence of a fan means no moving parts to fail, significantly reducing the risk of hardware malfunction and eliminating operational noise. This fanless media player design is crucial for deployment in sensitive environments such as retail spaces, quiet offices, or industrial control rooms where acoustic interference is unacceptable. Its operating temperature range of 0°C to 60°C ensures consistent performance across varying South African climate conditions, providing a reliable computing base.

Versatile operating systems for tailored solutions

The Giada DN84 offers the flexibility to run either Android 14 or Debian 12. This choice empowers users to select the operating system that best aligns with their specific application requirements, whether it’s the intuitive interface of Android for public-facing displays or the robust, open-source power of Debian for industrial control and data processing. This adaptability ensures the DN84 can be seamlessly integrated into existing IT infrastructures and deployed for a wide array of specialized tasks, reaffirming its status as a truly versatile barebone system.

Connectivity designed for modern infrastructure

Equipped with onboard Wi-Fi 6 and Bluetooth 5.4, alongside a Gigabit Ethernet port, the Giada DN84 ensures fast, stable network connectivity essential for real-time data transfer and remote management. It features three USB 3.2 Gen1 ports for high-speed peripheral connections and one USB 2.0 OTG port for added flexibility. This connectivity makes it an excellent 4K digital signage player for complex network environments. Optional configurations for multiple Ethernet ports or serial communication (RS232/RS485) make this player exceptionally adaptable to legacy systems and complex networking requirements, solidifying its position as a truly versatile barebone system.

FEATURES:

• Drive two 4K displays simultaneously with dual HDMI 2.0 outputs for expansive visual presentations.
• Achieve whisper-quiet operation and enhanced reliability with a rugged, fanless media player metal construction.
• Optimise power consumption with an energy-efficient 6W TDP processor, reducing operational expenditure.
• Select your ideal platform with support for both Android 14 and Debian 12 operating systems.
• Stay connected with advanced networking including Wi-Fi 6, Bluetooth 5.4, and a high-speed Gigabit Ethernet port.
• Expand your storage capabilities with an optional M.2 2242 SSD slot for rapid data access.
• Integrate video input streams with an optional HDMI-IN port for dynamic content.
• Ensure system uptime with Auto Power On functionality and a robust RTC for scheduled operations.
• Connect a wide array of peripherals using three USB 3.2 Gen1 ports and a USB 2.0 OTG port.
• Adapt to specialised industrial needs with optional dual RS232 or RS485 serial port configurations.

SPECIFICATIONS:

• CPU: Rockchip RK3576
• Processing Units: 4 Cores Cortex-A72 & 4 Cores Cortex-A53
• NPU:
  • 6TOPS RKNN
  • support int4/int8/int16/FP16/BF16/TF32 acceleration
• TDP: 6W
• System Memory: 4 GB, Onboard LPDDR4 /LPDDR4x (Optional: 8 GB)
• Storage:
  • 64 GB, Onboard eMMC
  • Optional: 1 x M-Key M.2(2242) PCIe2.1 X1 for SSD
• GPU Mali-G52MC3
• Graphic Engine OpenGL ES3.2, OpenCL2.0, Vulkan
• Multi-Media:
  • 8K30 H.264/H.265/VP9/AV2/AVS2 Decoder
  • 4K60 H.264/H.265 Encoder
• Display Interface:
  • 1 x HDMI (Max. 3840 x 2160 @120 Hz)
  • 1 x HDMI (Max. 2560 x 1600 @60 Hz)
  • Optional: 1 x HDMI-IN (Max. 3840 x 2160 @60 Hz)
• # of Display Supported: 2
• Watchdog Timer: NA
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Power Requirement: Lockable DC-IN, 12 V/3 A
• Construction: Metal, Black
• Operating System: Android 14 / Debian12
• Operating Temperature: 0°C ~60°C (32°F~140°F) @0.7m/s Air Flow
• Humidity: 95% @ 45°C (non-condensing)
• Certifications: CE, FCC Class B, UKCA
• Network Controller: Realtek RTL8211F Gigabit Ethernet
• Ethernet Interface: 1 x RJ45 (Optional: 2 x RJ45)
• Wi-Fi/BT: Onboard Wi-Fi/BT module (Wi-Fi 6/BT5.4)
• Mobile Network:
  • 1 x B-key M.2(3042) for 3G /4G
  • 1 x SIM Slot
• I/O interface:
  • USB: 3 x USB3.2 Gen1, 1x USB2.0 (OTG)
  • Serial Port: 1 x RS232 (Optional: 1 x RS232, 2 x RS485)
  • Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
  • Button: 1 x Power on, 1 x Recovery
  • Antenna: 1 x Connector for Wi-Fi/BT | 1 x Connector for 3G/4G (Reserved)
• Product Dimensions: 16.5 x 10.8 x 4 cm

WHAT'S IN THE BOX:

• Giada DN84 Dual-HDMI Rockchip RK3576 Fanless ARM Player – Black x1
• Wi-Fi Antenna x1
• AC Power Cable x1
• User Manual x1

Why Giada?

Giada is committed to delivering reliable and innovative embedded computing solutions for professional applications. With a focus on performance, durability, and adaptability, Giada empowers businesses in South Africa to build robust digital infrastructures. Choose Giada for dependable barebone systems engineered for the challenges of modern industry. Our fanless media player solutions are designed for longevity and silent operation, ensuring your digital signage remains impactful and reliable.
