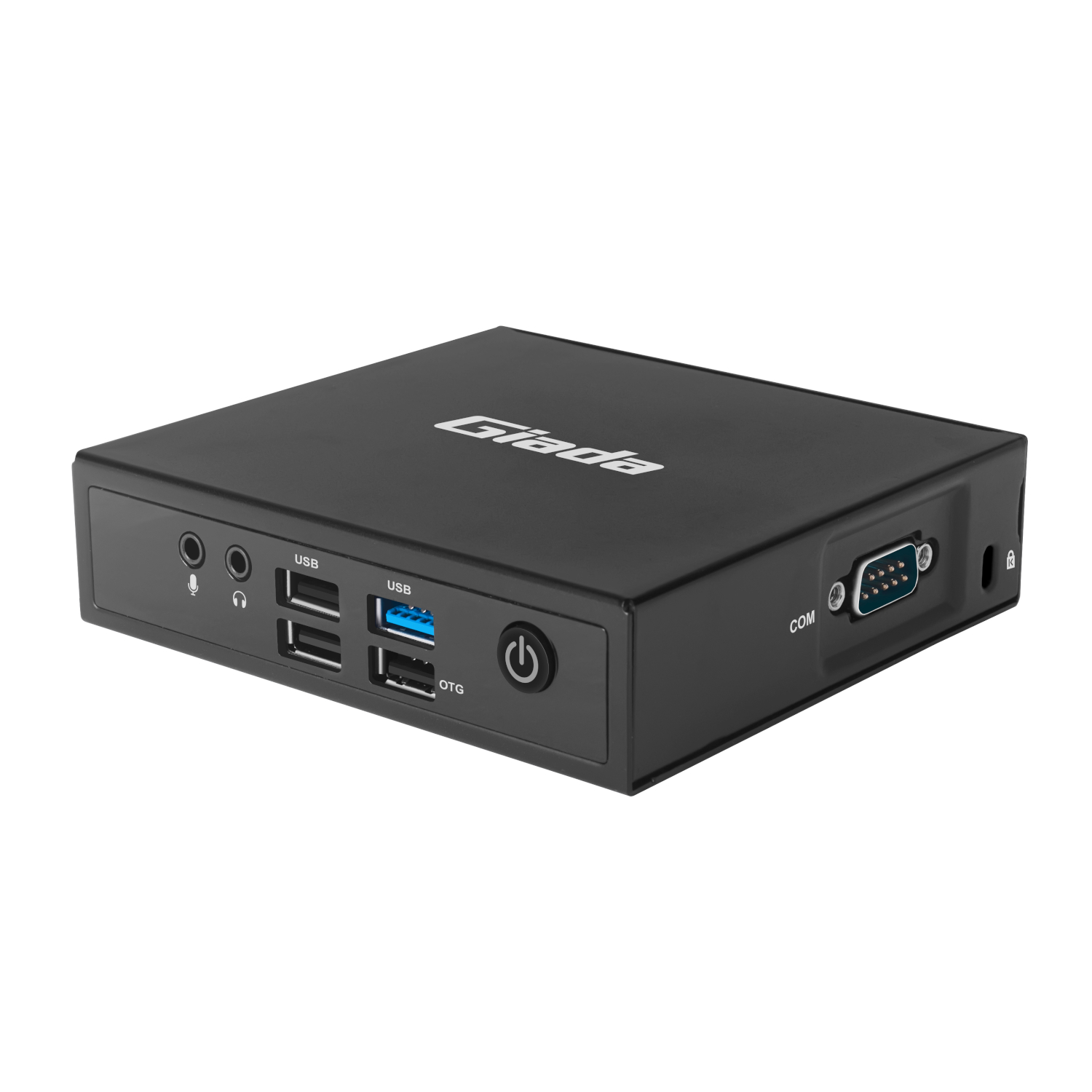

Giada DN76 RK3568 2GB DDR4 32GB eMMC Dual-HDMI Arm Player

The Giada DN76 Dual-HDMI Arm Player is a compact yet powerful 4K digital signage media player built for professional environments across South Africa. Powered by the efficient Rockchip RK3568 quad-core Cortex-A55 processor clocked at up to 2.00GHz, this Android 11 device delivers reliable, energy-efficient performance with a low 6W TDP, making it ideal for retail stores, corporate environments, hospitality venues, healthcare facilities and educational institutions. Its advanced ARM Mali-G52 GPU supports OpenGL ES 3.2, OpenCL 2.0 and Vulkan 1.1, ensuring smooth multimedia rendering and stable 4K playback for high-impact advertising and information displays.

Designed with flexibility and durability in mind, the DN76 features dual HDMI outputs, enabling simultaneous multi-display setups with resolutions up to 4096 x 2160 @60Hz on HDMI 2.0 and 2560 x 1440 @30Hz on HDMI 1.4. The fanless metal chassis ensures silent operation and enhanced longevity, even in demanding commercial installations. With onboard Wi-Fi and Bluetooth, optional 3G/4G module support, multiple USB ports including USB 3.2 Gen1, and RS232 connectivity, the DN76 offers seamless integration into modern digital signage networks. Its compact footprint (11.6 x 10.7 x 3 cm) makes it easy to deploy behind displays or in confined spaces, delivering powerful Android-based media playback in a professional-grade format.

FEATURES:

• 4 x Cortex-A55 cores up to 2.00GHz with 6W TDP for energy-efficient, stable performance.
• 4K 60fps H.265 / H.264 / VP9 decoder
• 1080P 60fps H.265 / H.264 encoder
• 1 x HDMI 2.0 (4096 x 2160 @60Hz)
• 1 x HDMI 1.4 (2560 x 1440 @30Hz)
• Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0 and Vulkan 1.1.
• Durable black metal construction for silent, reliable 24/7 operation.
• Onboard Wi-Fi & Bluetooth, reserved 3G/4G module connector, RS232 serial port, USB 3.2 Gen1 and USB 2.0 ports.
• Fanless design for quiet operation

SPECIFCIATIONS:

• CPU: Rockchip RK3568
• Frequency: 2.00 GHz
• Processing units: 4 Cores Cortex-A55
• TDP: 6 W
• System Memory: 2 GB, Onboard DDR4
• Storage: 32 GB, Onboard eMMC
• GPU: ARM Mali-G52
• Graphic Engine:
  • OpenGL ES 1.1/2.0/3.2
  • OpenCL 2.0, Vulkan 1.1
• Multi-Media:
  • 4K 60fps H.265/H.264/VP9 decoder
  • 1080P 60fps H.265/H.264 encoder
• Display Interface:
  • 1 x HDMI 2.0 (Max. 4096 x 2160 @60 Hz)
  • 1 x HDMI 1.4 (Max. 2560 x 1440 @30 Hz)
• I/O interface:
  • USB: 1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1 | 2 x USB2.0
  • Serial Port: 1 x RS232
  • Audio: 1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
  • Button: 1 x Power on, 1 x Recovery
  • Antenna: 1 x Connector for Wi-Fi/BT | 1 x Connector for 3G/4G (Reserved)
• Watchdog Timer: NA
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Remo on: NA
• Power Requirement: DC-IN, 12 V/2.08 A
• Construction: Metal, Black
• Operating System: Android 11
• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
• Certifications: CE, FCC Class B
• Humidity: 95% @ 40°C (non-condensing)
• Colour: Black
• Product Dimensions: 11.6 x 10.7 x 3 cm

WHAT'S IN THE BOX:

• Giada DN76 RK3568 2GB DDR4 32GB eMMC Dual-HDMI Arm Player – Black x1
• AC Power Adapter x1
• AC Power Cable x1
