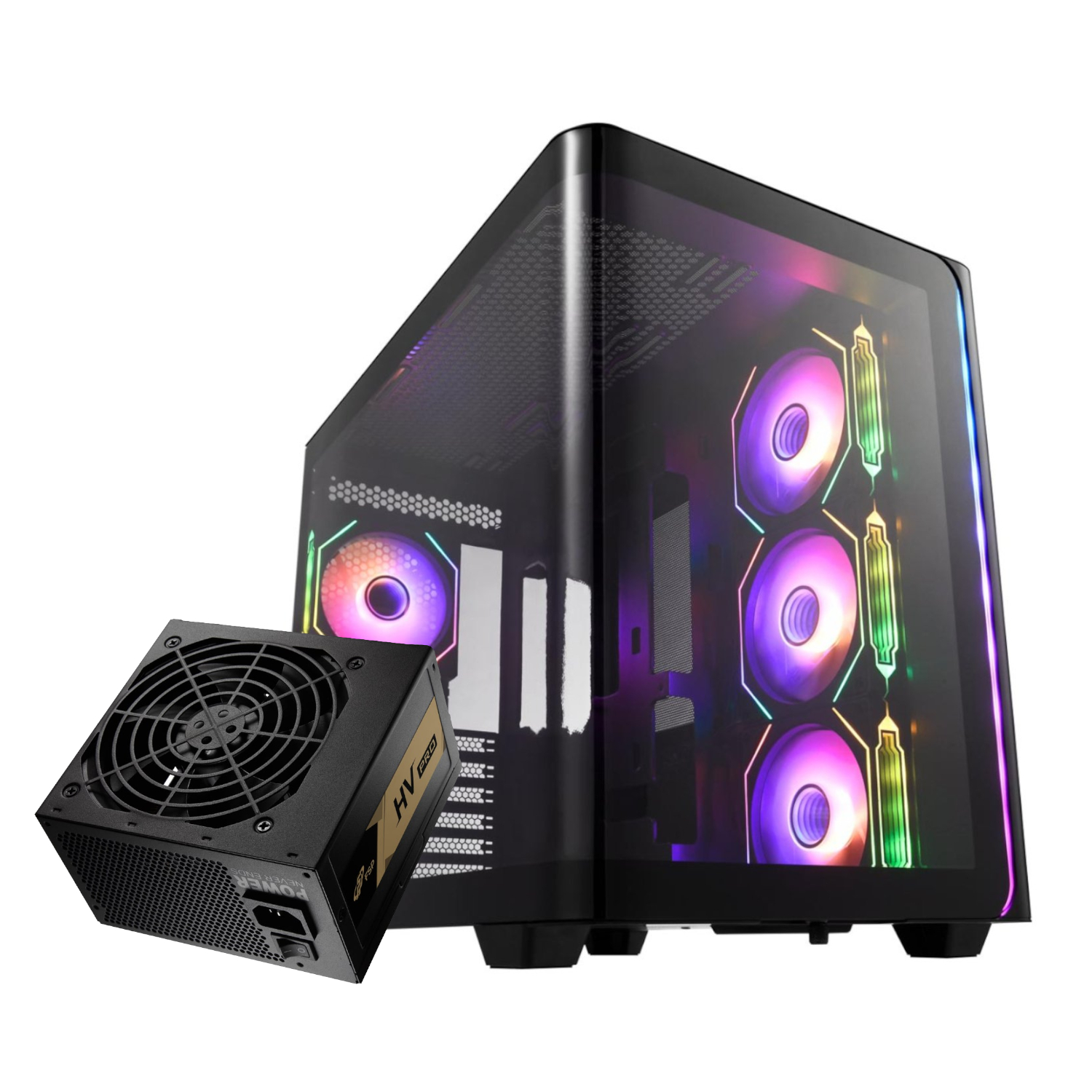

FSP M580 ATX Gaming Chassis and HV Pro 650W Power Supply Bundle

Elevate your gaming experience with the FSP M580 ATX Gaming Chassis and HV Pro 650W Power Supply Bundle. This dynamic duo combines sleek design with powerful performance, perfect for gamers who want to stand out and dominate. Ideal for a system upgrade or building a new gaming rig, this bundle lets you show off your system while giving it stable and efficient power.

The FSP M580 ARGB ATX Gaming Chassis is a masterclass in modern case design, featuring a striking 270° panoramic curved glass exterior that offers an unobstructed view of your build. The seamless integration of tempered glass and a rounded chamfer design gives this case a futuristic and elegant aesthetic, making it a true centerpiece for any gaming setup. Built with both style and performance in mind, the M580 enhances the gaming atmosphere by blending high-end visuals with functional engineering.

Designed for optimal cooling, the M580 comes pre-installed with four powerful ARGB fans, including three reverse ARGB fans on the side with a PWM controller and one at the rear. These fans are fully controllable via the motherboard, allowing for dynamic lighting synchronisation and efficient heat dissipation. With support for up to a 360mm radiator, this chassis ensures that your high-performance components stay cool even during the most demanding gaming sessions.

The FSP HV PRO 650W ATX Non-modular Power Supply offers reliable performance and essential features for powering modern PC builds. Designed to meet ATX12 v2.52 & EPS12 v2.92 standards, this power supply ensures stable and efficient operation, achieving 85% efficiency at typical loads under 230V EU conditions.

Equipped with Active PFC (Power Factor Correction) with a rating of ≥0.9, the HV PRO provides clean and efficient power delivery. Its +12V Single-Rail Design and DC-to-DC Module for +5V and +3.3V voltages ensure consistent and reliable performance for demanding hardware components.

Together, the FSP M580 ATX Gaming Chassis and HV Pro 650W power supply provide the perfect foundation for your dream gaming PC. Whether you’re battling it out in the latest FPS or exploring vast open worlds, this bundle ensures your system performs at its best while looking stunning. Level up your gaming setup and unleash your true potential with this unbeatable combination.

FEATURES:

• Chassis and power supply bundle
• 270° panoramic views curved glass exterior design
• Supporting back-connect motherboard
• Exquisite rounded chamber design
• Equipped with reverse ARGB fans
• 650W non-modular power supply
• 80 PLUS Standard certification
• 85% efficiency at typical load
• Ideal for upgrading or starting a new PC build

SPECIFICATIONS:

FSP M580 ATX Gaming Chassis

• Type: ATX Mid Tower
• Materials: 0.7mm SPCC, Curved Glass x 1
• Maximum CPU Cooler Height: 160mm
• VGA Card Length: 445mm
• Expansion Slots: 7
• Motherboard Support: ATX(back-connect motherboard), M-ATX, Mini-ITX
• External I/O port: USB3.0 x 2, Type-C
• Power Supply Type: 240mm ATX
• 3.5″ HDD: 1+1
• 2.5″ SSD: 2+1
• Fan Including(Pre-installed):
  • Side: 120mm reverse PWM ARGB x 3 with PWM controller
  • Rear: 120mm PWM ARGB x 1
  • ***Press and hold the RGB button to switch to sync mode.
• Fan & Water Cooler Support:
  • Side: 120mm x 3 or 140mm x 2
  • Top: 120mm x 3 or 140mm x 2 or 360mm Radiator
  • Bottom: 120mm x 3 or 140mm x 2 or 360mm Radiator
  • Rear: 120mm x 1
• Max Radiator Support: 360mm
• Colour: Black
• Product Dimensions: 46 x 28.5 x 39.8 cm
• Product Weight: 7500g

FSP HV Pro 650W Non Modular PSU

• Rated Output Power: 650W
• Form Factor: ATX
• 80 PLUS Certification: 230V EU Standard
• Input Voltage: 200-240V
• Input Current: 5A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: ≥85% at typical load
• Fan Type: Sleeve Fan, 120mm
• DC Output/Max Output Current/Max Combined Power:
  • +3.3V/20A/100W
  • +5V/20A/100W
  • +12V/54.1A/649.2W
  • -12V/0.3A/3.6W
  • +5Vsb/2.5A/12.5W
• Connectors:
  • MB 20+4 x1
  • 4+4 PIN x2
  • PCI-E 6+2 x2
  • SATA x4
  • Molex (PERIPHERAL) x2
  • Floppy x1
• Protection: OCP, OVP, OPP, SCP
• Product Dimensions: 15 x 14 x 8.6 cm

WHAT'S IN THE BOX:

• FSP M580 ARGB ATX Gaming Chassis – Black x1
• FSP HV PRO 650W ATX Non-modular Power Supply – Black x1
