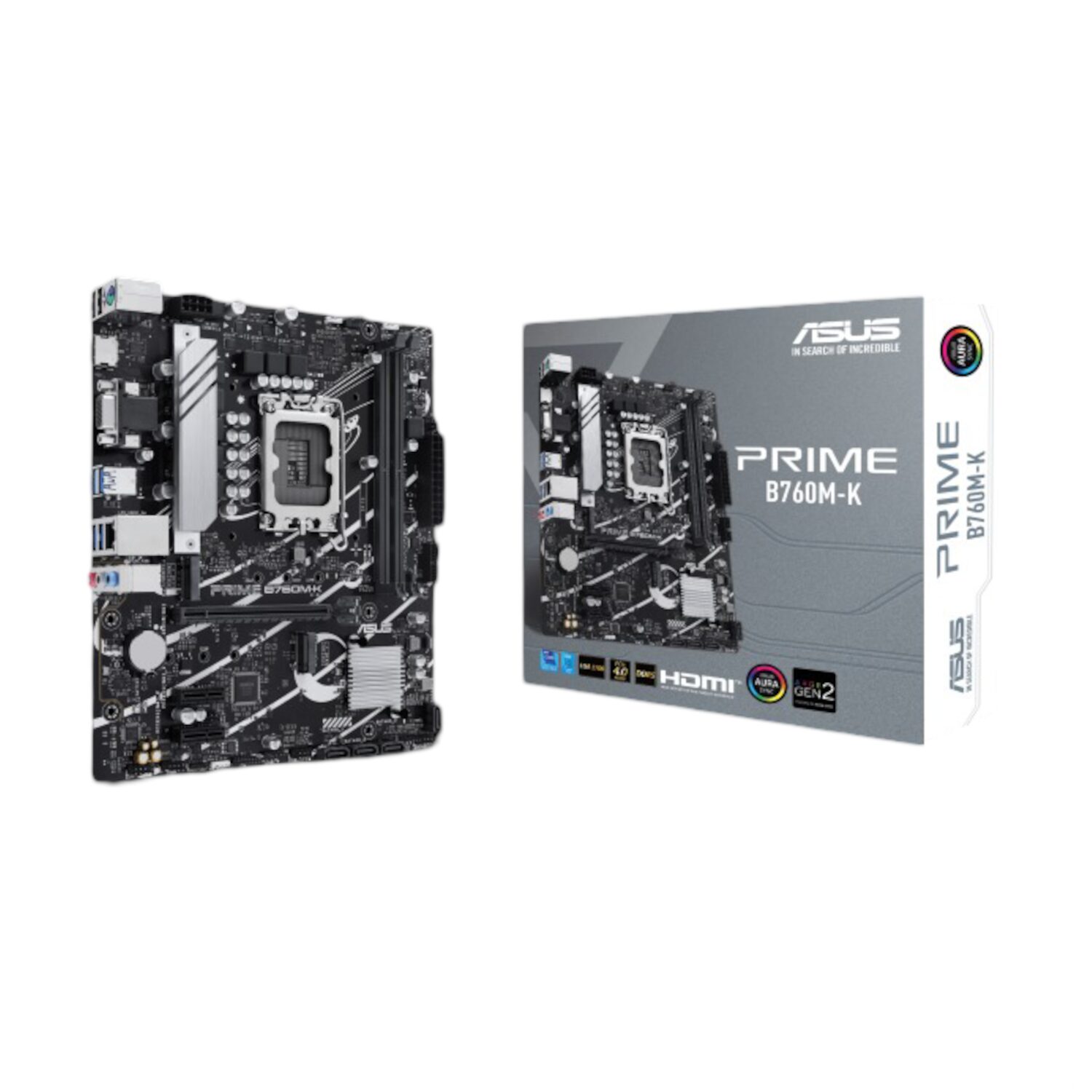

Asus PRIME B760M-K LGA1700 mATX Motherboard

Unleash next-gen performance with the ASUS PRIME B760M-K , a micro-ATX motherboard engineered for versatility, stability, and productivity. Built to support 12th and 13th Gen Intel® Core™ processors, this board is ideal for users seeking a reliable foundation for gaming rigs, creative workstations, or compact business PCs. The ASUS PRIME B760M-K blends essential functionality with premium-grade features, including PCIe 4.0 support, dual M.2 slots for ultra-fast NVMe storage, and ASUS-exclusive technologies designed to optimise performance and cooling.

Targeted at users who demand more from their motherboard without exceeding budget constraints, the ASUS PRIME B760M-K features robust power delivery and customisable fan controls via Fan Xpert 2+. Whether you're building a gaming setup or a multi-tasking productivity system, this board supports DDR4 memory up to 5333 MHz (OC), ensuring seamless multitasking and reduced load times.

With a clean, professional aesthetic and compatibility with ASUS Aura Sync RGB lighting, the ASUS PRIME B760M-K delivers both visual flair and operational excellence. Enhanced connectivity options, including 2.5Gb Ethernet and rear USB 3.2 Gen 1 ports, round out this high-performance package, making it a future-ready solution for today’s computing demands.

FEATURES:

• LGA1700 Socket Compatibility – Supports 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
• PCIe 4.0 Ready – Unlocks faster data transfer rates for next-gen GPUs and storage solutions.
• Dual M.2 Slots – Accommodates up to two NVMe SSDs for rapid boot times and data access.
• DDR4 Memory Support – Supports up to 64GB of DDR4 RAM, overclockable to 5333 MHz (OC).
• 2.5Gb Ethernet – High-speed LAN connectivity for lag-free online gaming and streaming.
• USB 3.2 Gen 1 Ports – Fast data transfers and compatibility with a wide range of peripherals.
• Fan Xpert 2+ – Intelligent cooling profiles ensure optimal thermal performance.
• ASUS DIGI+ VRM – Industry-leading digital power control for stable power delivery.
• ASUS LANGuard & Overvoltage Protection – Enhanced durability with hardware-level safeguards.
• ASUS Armoury Crate – Unified software for system tuning, RGB control, and driver updates.
• Aura Sync Compatibility – Customise and synchronise RGB lighting across compatible devices.

SPECIFICATIONS:

• CPU:
• Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® B760 Chipset
• Memory:
  • 2 x DIMM slots, Max. 96GB, DDR5
  • 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
• Graphics
  • 1 x VGA port
  • 1 x HDMITM port
• Expansion Slots:
  • Intel® CoreTM Processors (14th & 13th & 12th Gen)
    1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
    2 x PCIe 4.0 x1 slots
• Storage:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® CoreTM Processors (14th & 13th & 12th Gen)
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• USB:
  • Rear USB (Total 6 ports)
    4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A）
  • Front USB (Total 5 ports)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
• Back Panel I/O Ports:
  • 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x VGA port
  • 1 x HDMITM port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 2 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
      • 1 x 8-pin +12V Power connector
  • Storage related
    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • Miscellaneous
    • 2 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 10-1 pin System Panel header
• Special Features:
  • ASUS 5X PROTECTION III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • Q-DIMM
    • Q-LED Core
    • Q-Slot
  • ASUS EZ DIY
    • ProCool
  • ASUS Thermal Solution
    • VRM heatsink design
  • Aura Sync
    • Aura RGB header
    • Addressable Gen 2 headers
• Software Features:
  • ASUS Exclusive Software
    • Armoury Crate
      • Aura Sync
      • Fan Xpert 2+
      • Power Saving
      • Two-Way AI Noise Cancellation
    • AI Suite 3
      • DIGI+ VRM
      • PC Cleaner
    • ASUS CPU-Z
    • Norton 360 Deluxe (60 Days Free Trial)
    • WinRAR
    • UEFI BIOS
    • ASUS EZ DIY
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: mATX Form Factor (24.4cm x 21.1cm)

WHAT'S IN THE BOX:

• Asus PRIME B760M-K LGA1700 mATX Motherboard x1
• SATA 6Gb/s cables x2
• I/O Shield x1
• M.2 anchors x2
• User guide x1
