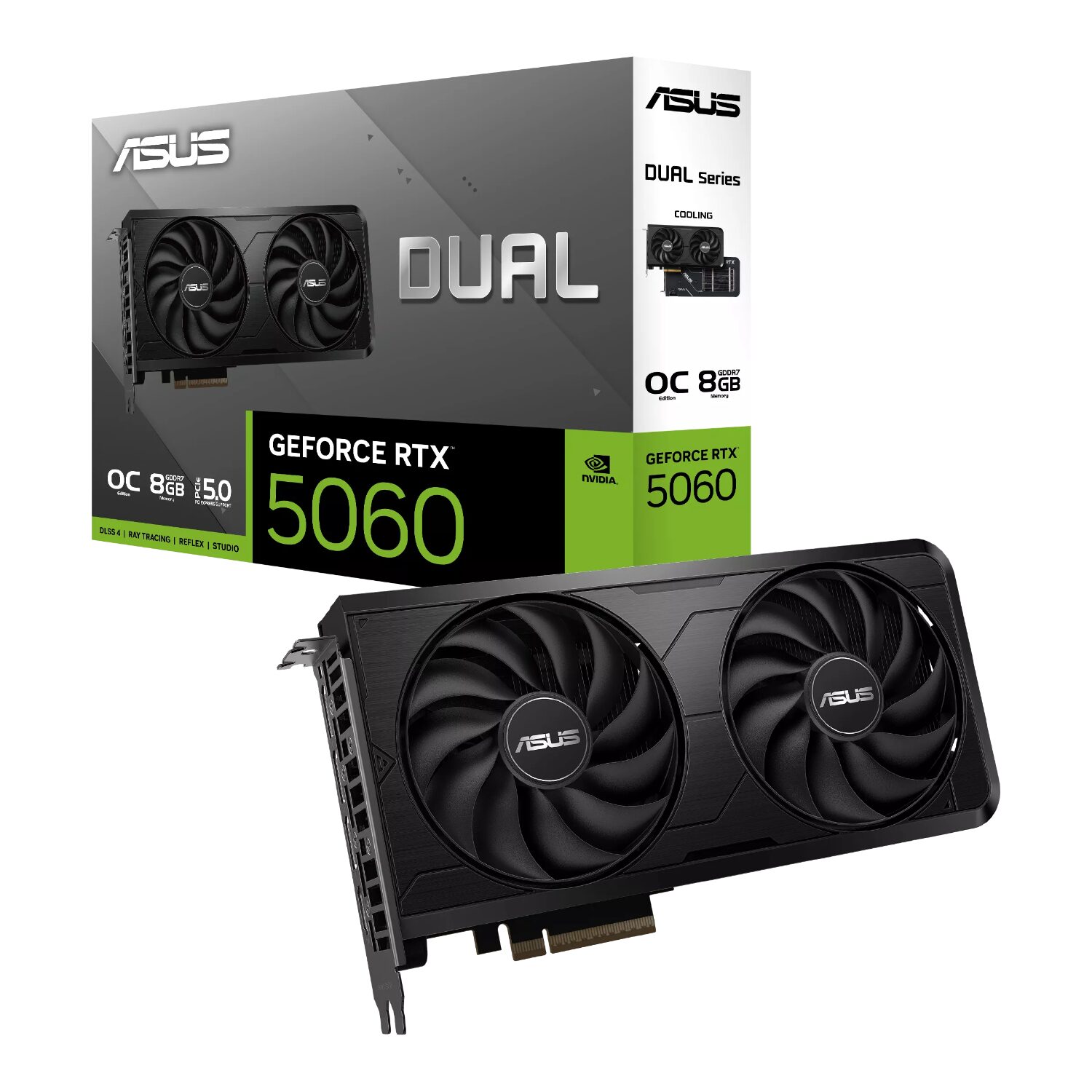

ASUS GF RTX 5060 DUAL 8G OC EVO

NVIDIA Blackwell gaming in a compact package | 8 GB GDDR7 at 28 Gbps | 2.1-slot, 225 mm design | Axial-tech dual-fan cooling | Four-display output support

Quick Specs

• Experience NVIDIA Blackwell-generation gaming with the GeForce RTX 5060 GPU, featuring 3840 CUDA Cores and AI-accelerated performance
• Achieve smooth, high-fidelity visuals powered by 8 GB of fast GDDR7 memory running at 28 Gbps
• Enjoy a compact 2.1-slot form factor and 225 mm card length — perfectly suited to small-form-factor and mid-tower builds alike
• Stay cool and quiet with two Axial-tech fans and 0dB technology that silences the fans entirely during light workloads
• Connect up to four displays simultaneously via one HDMI 2.1b and three DisplayPort 2.1b outputs, with support up to 7680 x 4320 resolution

Flagship-tier cooling, mainstream-friendly size

The ASUS Dual GeForce RTX 5060 EVO OC Edition brings NVIDIA's Blackwell architecture to builders who refuse to compromise on either performance or physical footprint. Powered by the GeForce RTX 5060 GPU with 3840 CUDA Cores, a boost clock of 2565 MHz in OC mode, and 8 GB of GDDR7 memory, this card is engineered for gamers and creators who want genuine next-generation capability without needing a full-tower chassis to house it.

Two Axial-tech fans that work harder and last longer

Tired of larger cards running hot and loud in compact cases? The Dual's two Axial-tech fans feature a smaller hub design that allows for longer blades and a barrier ring, increasing downward air pressure directly onto the heatsink. Dual-ball fan bearings extend bearing lifespan to up to twice that of conventional sleeve-bearing designs, while 0dB technology automatically stops the fans when GPU temperature drops below 50°C and power draw is low — so your build stays silent during everyday tasks and light gaming sessions.

Built to last, built for confidence

ASUS reinforces the Dual's long-term reliability through several engineering choices. A vented backplate improves heat dissipation behind the PCB, reducing thermal build-up during sustained workloads. A protective backplate adds structural rigidity to prevent PCB flex, while a 304 stainless steel mounting bracket resists corrosion and physical stress over years of use. Auto-Extreme Technology completes all PCB soldering in a single automated pass, reducing thermal strain on components during manufacturing and resulting in a higher-quality, more consistent product.

AI-accelerated performance with DLSS 4 and full ray tracing

The Blackwell architecture underpinning the RTX 5060 delivers fifth-generation Tensor Cores for maximum AI performance, fourth-generation RT Cores for real-time ray tracing, and support for NVIDIA DLSS 4 with Multi Frame Generation — allowing the card to render dramatically higher frame rates using AI-reconstructed frames. NVIDIA Reflex 2 with Frame Warp reduces input latency based on the latest mouse input data, keeping competitive play feeling sharp and responsive. For creators, the ninth-generation NVIDIA Encoder (NVENC) accelerates video exports in applications such as DaVinci Resolve and Adobe Premiere Pro, and NVIDIA Studio drivers provide optimised stability for creative workloads.

Features

• NVIDIA GeForce RTX 5060 GPU — 3840 CUDA Cores, Blackwell architecture with fifth-gen Tensor Cores and fourth-gen RT Cores
• 8 GB GDDR7 memory at 28 Gbps across a 128-bit interface for fast, responsive frame delivery
• OC mode boost clock of 2565 MHz (Default mode: 2535 MHz) for out-of-the-box overclocked performance
• Two Axial-tech fans with longer blades, barrier ring, and dual-ball bearings for superior airflow and longevity
• 0dB technology automatically stops fans below 50°C for silent operation during light workloads
• Vented and protective backplate improves heat dissipation and prevents PCB flex
• Compact 2.1-slot, 225 mm design compatible with small-form-factor and compact mid-tower builds
• Four display outputs: 1 x HDMI 2.1b and 3 x DisplayPort 2.1b, supporting up to 7680 x 4320 resolution across up to four screens
• ASUS GPU Tweak III software for real-time clock, voltage, and fan tuning

Specifications

• GPU Chipset: NVIDIA GeForce RTX 5060
• VRAM: 8GB
• Memory Type: GDDR7
• Boost Clock: 2565MHz
• PCIe Interface: PCI Express 5.0
• Display Outputs: 1 x HDMI 2.1b,3 x DisplayPort 2.1b
• Card Length: 225
• Slot Width: 2.1 Slot
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Cooling Fans: 2
• RGB Lighting: No
• Colour: Black
• Warranty: 36 months
• Product Dimensions: 22.5 x 12.0 x 4.2 cm

What's in the Box

• ASUS Dual GeForce RTX 5060 EVO OC Edition 8GB GDDR7 – Black x1
• Speedsetup Manual x1
• Thank You Card x1

Why ASUS

ASUS has spent decades engineering graphics cards that balance real-world performance with long-term reliability. Through innovations like Auto-Extreme manufacturing, Axial-tech fan design, and purpose-built software such as GPU Tweak III, ASUS delivers hardware that holds up under sustained load — giving South African gamers and creators the confidence to push their systems further, for longer.
